Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3

Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3

Products - Biogas Plant - Biogas Torch
  • Item Name
    Water Storage Bladder Tank/Flexible Tanks
  • Application
    Industry Fuel, Biogas Projects,Treatment And Combustion Of Petrochemical Exhaust Gas
  • Application 2
    Biogas Of Sewage Treatment Plant And Landfill Plant.
  • Material
    SS 304
  • Type
    Internal Combustion Type And External Type Torch
  • Gas Processing
    50-1000 M3/h
  • Life Time
    10-30 Years
  • Methane Content
    ≥33%
  • Hydrogen Sulfide Content
    ≤200PPm
  • Mechanical Impurities
    Particle Size<150μm
  • Operating Environment
    Outdoor Windproof , Rainproof, Anti-thunderstorm
  • Customized
    Accept
  • Place of Origin
    China
  • Brand Name
    ALY
  • Certification
    ISO, CE, SGS
  • Model Number
    ALY-B
  • Minimum Order Quantity
    1
  • Price
    USD990-USD10000/PCS
  • Packaging Details
    wooden box
  • Delivery Time
    10-20 working days after received the payment
  • Payment Terms
    T/T, L/CWestern Union,, MoneyGram, D/P, D/A
  • Supply Ability
    5000

Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3

  • Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3
  • Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3
  • Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3
  • Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3
  • Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3
  • Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3
Get Price Contact Now
Product Description

Treatment and combustion of petrochemical exhaust gas,biogas of sewage treatment plant and landfill plant.



Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3 0
Biogas torch is used to treat petrochemical plants, oil refineries, landfills, breweries, farms, sewage treatment plants, energy and environmental protection, biogas projects, chemical plants and other plants or devices that cannot be collected and reprocessed. Combustible, combustible and toxic Special combustion facilities for gas and steam, biogas torch is an important measure to ensure the safe production of the factory and reduce environmental pollution. It converts combustible and combustible toxic gases and vapors into non-combustible inert gases.

Biogas will not only pollute the environment but also cause serious safety hazards. Therefore, centralized treatment of anaerobic biogas is required.

In order to solve the problem of surplus biogas and the inability to directly discharge, we designed and produced a biogas torch.
The biogas enters the torch and is burned and then discharged. The discharged gas meets environmental protection standards. The
biogas produced by some industrial projects is burned by a biogas torch to meet environmental protection emission requirements;
the landfill gas is burned through the torch to achieve safety and deodorization.

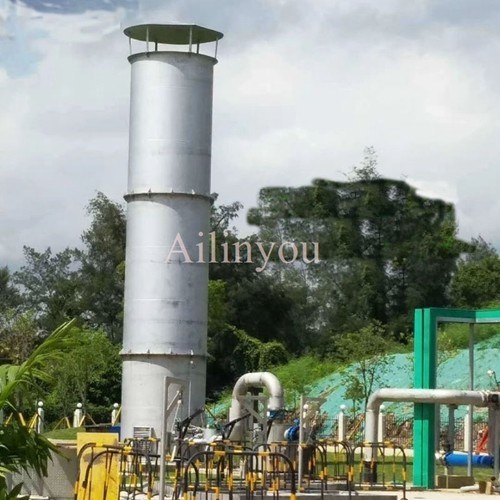

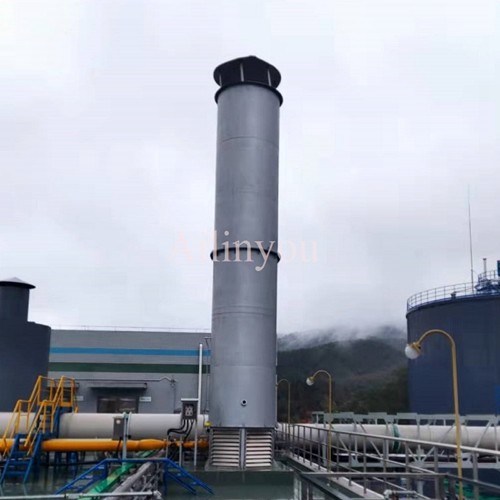

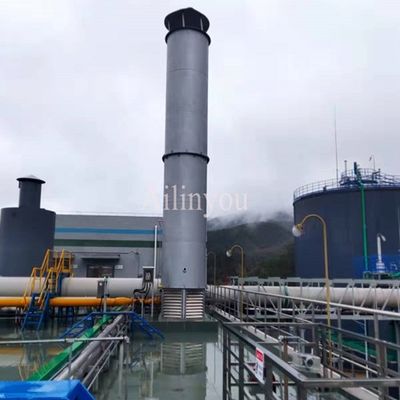

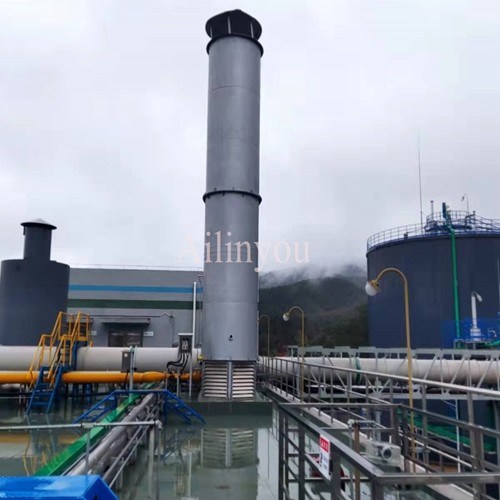

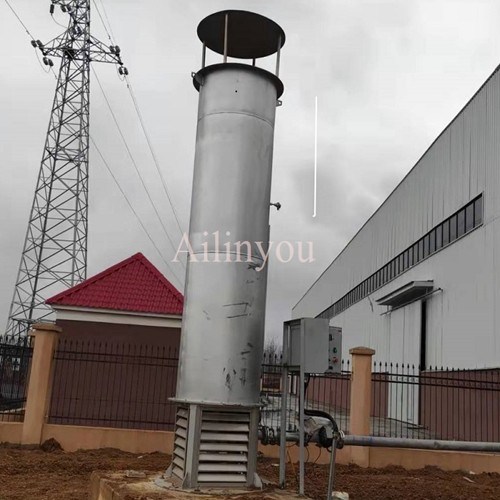

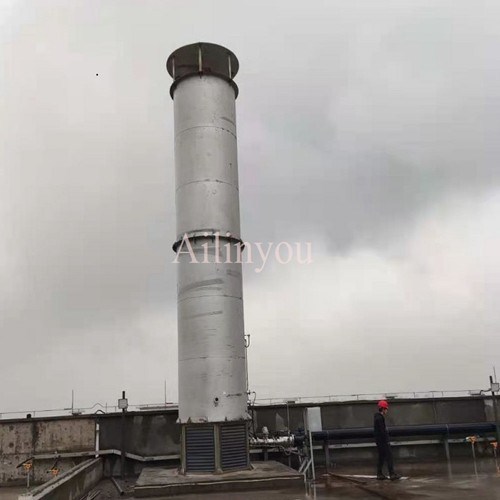

The biogas torch is a cylindrical tower structure. The top of the tower body is equipped with a wind-proof diversion cap. It is composed of a tower body, a burner, a valve, a flame arrestor and a control system. It has the characteristics of simple structure, convenient maintenance, and good combustion conditions. It can ignite the combustion head of the biogas torch under various bad weather conditions, such as rain and snow.

The main shell of the biogas torch is made of 304 stainless steel, the middle is an insulation material layer, and the inner tank is made of high-temperature castable. It has the characteristics of high temperature resistance, corrosion resistance and oxidation resistance. The surface temperature of the torch does not exceed 60°C, which fully guarantees the service life of the torch.

Biogas torch configuration: The biogas torch has the functions of flameout protection, power-off safety protection and tempering safety protection, convenient operation and safe operation. The built-in ignition system adopts automatic electronic ignition and is equipped with a permanent light. The permanent light is only turned off when the pressure is extremely low, and it stays on at other times to ensure the ignition success rate.

The biogas torch is equipped with a flame monitoring system. When no flame signal is detected, the system will automatically cut off the biogas supply to ensure safety. The biogas torch has internal combustion type and external combustion type, which can be selected according to the actual situation.


There have internal combustion type and external type torch, can be customized according to the actual situation.
Customer Feedback
Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3 1Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3 2Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3 3Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3 4Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3 5
Ailinyou Supply Enclosed Biogas Flare Sytem Customized Biogas Torch 30m3 ~1000m3 6
Introduction Of Biogas

Biogas is a kind of combustible gas formed by microbial decomposition and fermentation of organic matter under anaerobic conditions. Its main components are methane, nitrogen and carbon dioxide. Under normal circumstances, the methane content in biogas is 45% to 65%, and carbon dioxide is 20% to 20%. 30% and a small amount of impurities. It is a very harmful greenhouse gas that pollutes the atmosphere. The emission of a large amount of biogas and chemical exhaust gas (containing methane CH4) will cause the temperature of the atmosphere to rise, and the severe weather has caused huge economic losses. It can be discharged after treatment.



Torch Structure

The torch tower body adopts a metal outer cylinder + fire-resistant refractory material insulation structure.



  • The inside of the cylinder is the combustion chamber. The combustion temperature in combustion chamber is set according to the nature of the gases and the physical & chemical indicators, so that the combustion gas has a suitable combustion environment to ensure that the gases are fully burned.
  • The torch is equipped with pressure, ignition, temperature, flame detection and other automatic control devices and deployment systems.
  •
  • Windcap
  • Air Flow-Around Plate
  • Back-flow Plate
  • Combustion Internal Chamber
  • Air Channel
  • Flame Arrestor
  • 2nd Air Channel
  • Flange of Connection
  • Thermal Couple
  • Air Flow-around Plate
  • Flame Stabilizer
  • HV Ignition Transformer
  • Ignition Electrode
  • Gas Multi-hole Nozzle
  • Air Blower
  • Electric Gas Train
  • Pressure Transmitter
    Introduction of Internal Injection Torch



  • The torch tower body adopts a metal cylinder (double-layer) structure.
  • Adopting multi-hole gas nozzles, cup type flame stabilizer & air outfitted.

  •

  • The temperature control system is adopted to detect and control the ambient temperature in the combustion tower to achieve reasonable theoretical conditions (800-1000°C) for full combustion of exhaust gas, biogas or other harmful gases from oxidation treatment plant. Prevent the high temperature of the combustion system from producing NOx. (If equipped)
  • Fully automatic pressure controlling for forced air injection, automatic ignition, automatic flame detection, and automatic flame-out protection, automatic sampling of gas high-pressure and low-pressure for automatic ON/OFF of torch.
  • Outdoor design for continuous operation.
