China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system

China Factory PVC Red Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas biogas storage system

  • Item Name
    Biogas Plat,biogas System ,biogas Storage Bag,biogas Digester
  • Material For Digester
    PVC Membrane
  • Raw Material
    Organics,manure,stalks
  • Material Of Gas Holder
    Red Mud
  • Color
    Red/Blue/White Or Customized
  • Capacity
    2-2000m3
  • Feature
    Waterproof,Flame Retardant,Movable
  • Scope Of Application
    Methane, Oxygen, Carbon Dioxide And Other Inert Gases
  • Lifespan
    10-15 Years
  • Installation
    Easy To Operate
  • Place of Origin
    China
  • Brand Name
    ALY
  • Certification
    ISO, CE, SGS
  • Model Number
    ALY-BIOGAS
  • Minimum Order Quantity
    1
  • Price
    USD30~USD988
  • Packaging Details
    Carton box and wooden box
  • Delivery Time
    7-15 WORK DAYS
  • Payment Terms
    Western Union, T/T, L/C
  • Supply Ability
    5000

China Factory PVC Red Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas biogas storage system

Product Description
China Factory PVC Red Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas biogas storage system
China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 0

Red mud soft biogas plant, the tank body is provided with an air outlet hole, inlet, outlet, with the pipe assembly forming connection, inlet and outlet can be made of 200mm-300mm, caliber, not easy to plug, the inlet and outlet are integrally welded(nonbolt connection), light weight and good seal. Generally speaking there are buried, half buried, placing three forms. According to user needs.

Material For Digester
PVC membrane
Raw material
Organics,manure,stalks
Material of gas holder
Red Mud
Color
Red/Blue/White Or Customized
Capacity
2-2000m3
Feature
- pressure and abrasion resistant
- Good expansibility and tightness
- Foldable and lightweight
- Puncture resistant, corrosion resistant
Scope of application:
methane, oxygen, carbon dioxide and other inert gases
Lifespan
10-15 year
Installation
Easy to operate

The characteristics of red mud biogas plant

★ Lightning protective, anti-seismic, anti-aging, pressure and abrasion resistant, puncture resistant, corrosion resistant, impermeable
Convenient to carry and install, foldable and light
Easy and quick to install
Generate much marsh gas without stirring for excellent sealing performance
Extensive sources of fermented raw material
Safe to use
Sanitary and environment-friendly
Easy to operate and maintain
Easy for industrial production and business operation

Specification
Name
Specification
Material thickness
Material
4m3 biogas plant
2X2X1m
1.0-1.2mm
Red mud PVC+MESH
6m3 biogas plant
3X2X1m
1.0-1.2mm
Red mud PVC+MESH
8m3 biogas plant
3X2X1.33m
1.0-1.2mm
Red mud PVC+MESH
10m3 biogas plant
4X2X1.33m
1.0-1.2mm
Red mud PVC+MESH
20m3 biogas plant
6X2.5X1.33m
1.0-1.2mm
Red mud PVC+MESH
50m3 biogas plant
6X3.3X2.5m
1.2mm
Red mud PVC+MESH
100m3 biogas plant
custom
1.2mm
Red mud PVC+MESH
Please note that all size can be customized.
Product details

Material for biogas production

a.Animal and people manure
b.Food waste
c.Straw powder
d.Palm oil / palm nut
Attention: Please do not put chemical material in the biogas digester.

China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 1
China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 2

Work Flow of the Biogas Plant

China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 3

Our biogas can used for home, farm and industry...

Our home use biodigester include 6m3, 8m3, 10m3, 20m3 for your choice. Usually,
6m3 biogas plant can produce 1.5m3-2.1m3 gas,suitable for 2-3 people cooking.
8m3 biogas plant can produce 2m3-2.8m3 gas, suitable for 4-5 people cooking;
10m3 biogas plant can produce 2.5m3-3.5m3 gas cooking, suitable for 6-8 people cooking;
20m3 biogas plant can produce 5-7m3 gas cooking., suitable for 10-15 people cooking.

Farm and Industry We provide custom-made service.

If you not sure, please inform us:

- What is your main manure and how many estimated kg will be produce per day!

- What this biogas plant will use for?

So that we can provide best solution for you.

More Details
Traditional biogas digester
New type red mud biogas digester
1. Easy to explode, low safety factor.
2. The biogas digester is fixed and cannot be stretched.
3. It is not cold proof, easy to crack, not resistant to sunlight, short life.
4. The installation is troublesome and the later maintenance cost is high.
5. The process is complex and the maintenance is difficult.
6. There are quality risks, easy to leak and pollute the environment.
1. Strong compression resistance and high safety factor. 2. Antifreeze, acid and alkali resistance, lightning protection, earthquake resistance, tear resistance, life up to 15 years.
3. Less investment, saving cost of coal and natural gas. The equipment is easy to master, the maintenance is simple, and the pool
body can be used permanently.
4. Good sealing, environmental protection and cleaning.
5. Biogas slurry can kill bacteria and can be directly used as organic fertilizer.

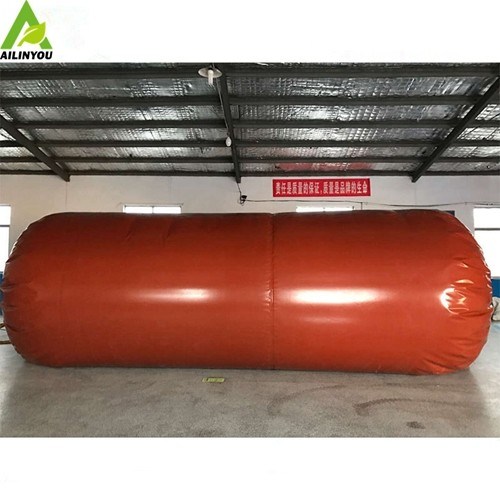

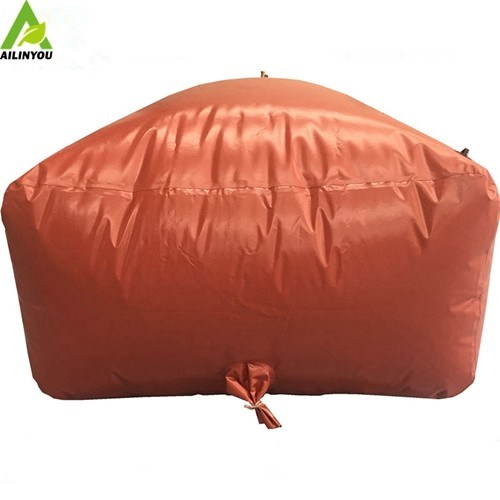

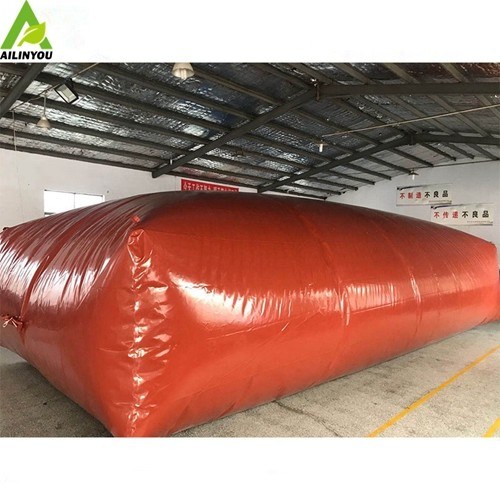

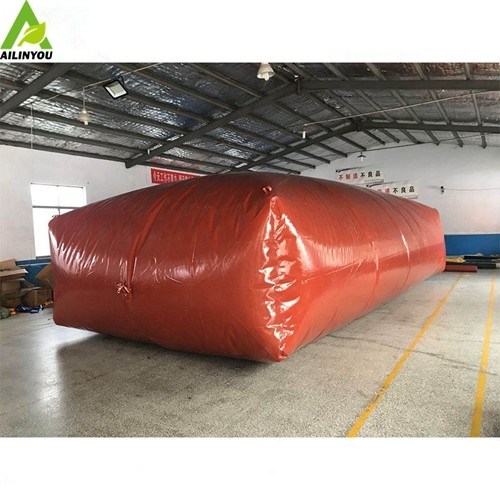

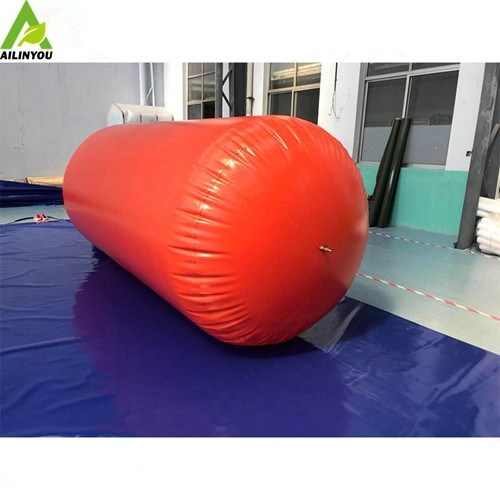

Picture show





China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 0China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 5China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 6China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 7China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 8China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 9China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 10

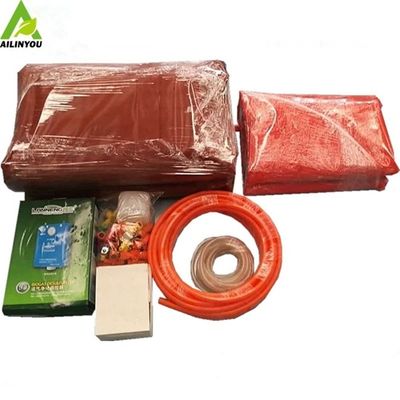

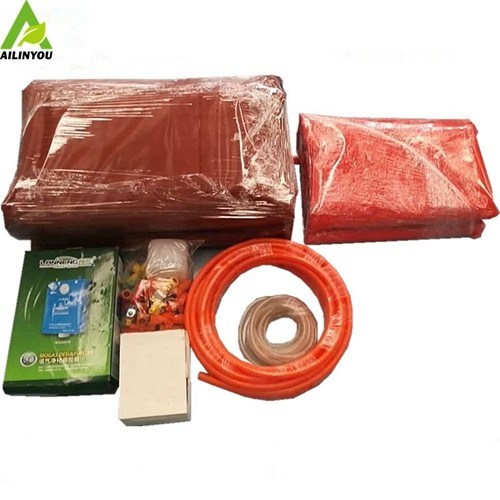

Packing & Delivery

Packing :

High strength carton box, wooden box / palltet / customized. customer logo print is accepted.

Delivery :

by express, by air, and by sea according to the quantity.

China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 11China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 12

China Factory  PVC Red  Mud PVC 50m3 Biogass Digester Bag Portable Digester Biogas  biogas storage system 13
