Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank

Factory Direct Durable TPU Oil Bladder Storage Tank Collapsible 500 Gallon Fuel Tank

  • Item Name
    Flexible Fuel Tank ,Fuel Storage Bladder
  • Application
    Diesel, Gasoline, Crude Oil, Oil Storage, Transportation
  • Material
    TPU
  • Thickness
    0.7-1.5mm
  • Capacity/Volume
    50L ~500,000Liters
  • Shape
    Pillow, Onion, Rectangle/Pillow/Onion/Round, Square Shape, Rectangular/square/round/onion
  • Feature
    Waterproof, Flame Retardant, Tear-Resistant, Anti-leaking, Anti-corrosion
  • Life Time
    Over 10 Years
  • After-sales Service Provided
    Online Support, Video Technical Support, Free Spare Parts
  • Customized
    Yes
  • Warranty
    2years
  • Place of Origin
    China
  • Brand Name
    F
  • Certification
    ISO, CE, SGS
  • Model Number
    F
  • Minimum Order Quantity
    1
  • Price
    USD98-USD998/PCS
  • Packaging Details
    Carton box or wooden box
  • Delivery Time
    10-15working days after received the payment
  • Payment Terms
    Western Union, T/T, L/C
  • Supply Ability
    5000

Factory Direct Durable TPU Oil Bladder Storage Tank Collapsible 500 Gallon Fuel Tank

Product Description

Factory Direct Durable TPU Oil Bladder Storage Tank Collapsible 500 Gallon Fuel Tank

Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 0Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 1Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 0Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 3Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 4Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 5

Flexible and Software Fuel Storage Flexitank Bladder is a kind of flexible fuel container, which is mainly used for temporary and long-term storage of gasoline, diesel, jet fuel, avgas, aviation kerosine and so on. Many customers use it for private jets, outdoor vehicles, ships, yachts, etc.. Other expedition aircraft clubs and air force are like it too, and think it is awesome choice.

Type
Pillow, Onion, Rectangle/Pillow/Onion/Round, Square Shape, Rectangular/square/round/onion
Raw material
Three layers with mesh PVC and TPU
Material of thickness
0.7-1.5mm
Color
Red/Blue/White /Green /Black /Yellow ...
Capacity
0.1m3-1000m3(100Liters ~1000,000Liters )
Feature
Anti-uv, anti-leaking, Anti-Fouling and acid& alkali resistance.
Temperature
-40°C~+90°C.
Lifespan
10-15 year
Advantages
It can be folded when empty, the weight light and easy to transport, on-site installation is simple, long life and low maintenance costs.



Specification
Type
Volume
Size
Thickness
G.W
Packing size
P2
200L
1.4*0.9m
0.9mm
~3kgs
~0.4*0.4*0.3m
P5
500L
2*1m
0.9mm
~5kgs
~0.4*0.4*0.3m
P01
1,000L
2.5*1.5m
0.9mm
~11kgs
~0.5*0.4*0.3m
P02
2,000L
3*2m
0.9mm
~16kgs
~0.5*0.4*0.3m
P03
3,000L
3.5*2m
0.9mm
~22kgs
~0.5*0.5*0.4m
P04
4,000L
4*2.4m
0.9mm
~28kgs
~0.7*0.5*0.4m
P05
5,000L
4.3*3m
0.9mm
~35kgs
~0.7*0.5*0.4m
P08
8,000L
5*3m
0.9mm
~40kgs
~1.1*0.5*0.3m
P10
10,000L
5*4m
1.0mm
~55kgs
~1.1*0.55*0.35m
P15
15,000L
6*4.m
1.0mm
~75kgs
~1.1*0.6*0.4m
P20
20,000L
7*4.3m
1.0mm
~85kgs
~1.1*0.7*0.5m
P25
25,000L
6.3*5.8m
1.0mm
~98kgs
~1.1*0.7*0.6m
P30
30,000L
7.3*7m
1.0mm
~140kgs
~1.3*0.7*0.6m
P40
40,000L
9*7m
1.2mm
~210kgs
~1.3*0.8*0.7m
P50
50,000L
10*8m
1.2mm
~256kgs
~1.3*0.9*0.8m
P100
100,000L
14*9m
1.2mm
~460kgs
~1.6*0.9*85cm
P150
150,000L
15*12m
1.2mm
~570kgs
~1.6*1*0.9m
P200
200,000L
15*14m
1.2mm
~710kgs
~1.6*1.2*0.9m
P500
500,000L
25*20m
1.5mm
~1800kgs
~2.5*1.8*1.5m


And the size we can accept customized .

Inlet and Outlet :
1/2’’ - DN15
3/4’’ - DN20
1’’- DN25
1-1/4’’ - DN32
1-1/2’’ - DN40
2’’ - DN50
2-1/2’’ - DN65
3’’ - DN80
3-1/2’’ - DN90
4’’ - DN100
Material selection
Plastic, Stainless steel, Aluminum

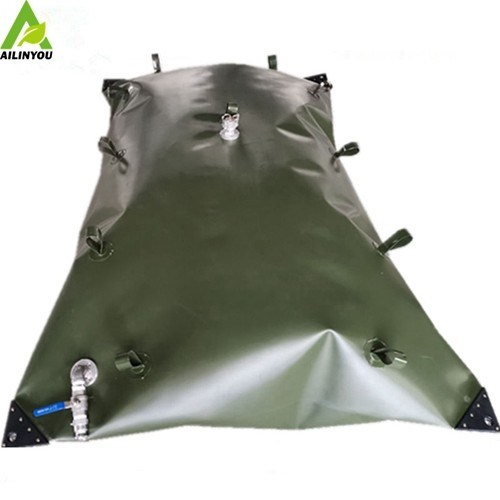

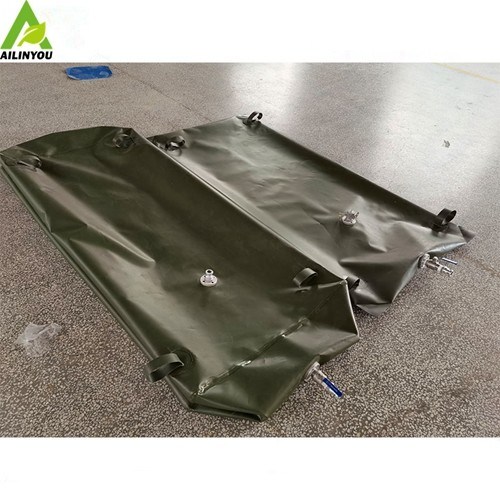

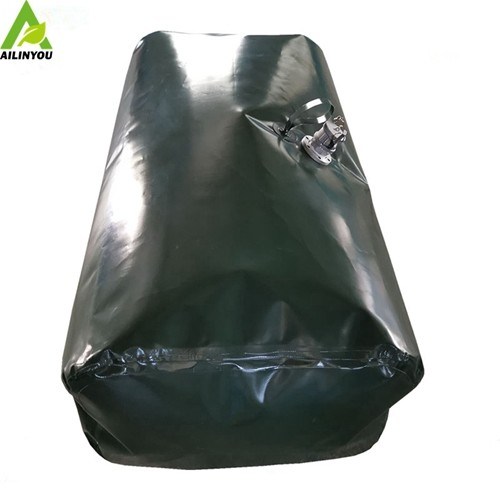

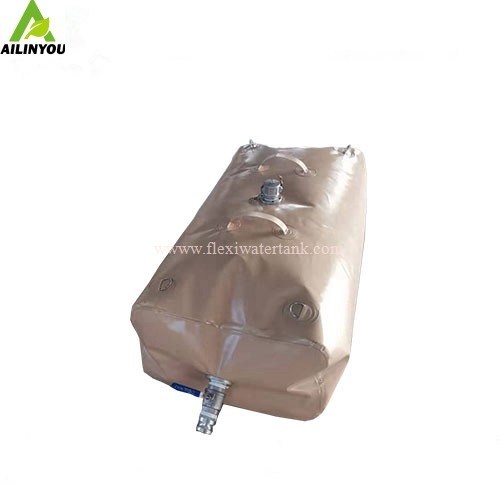

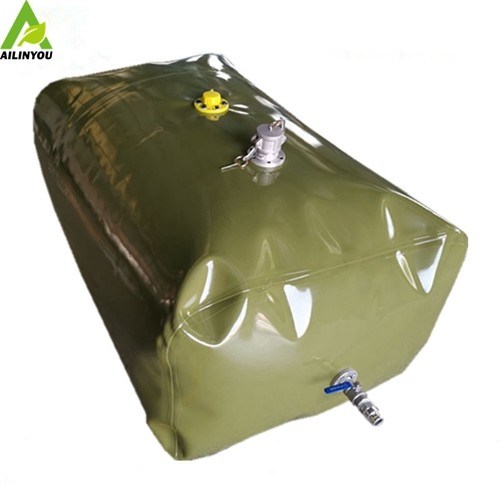

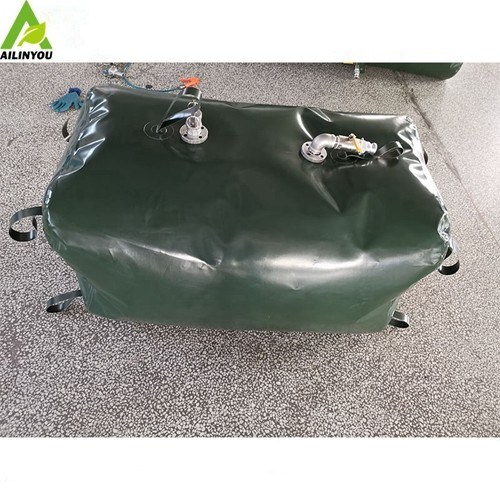

Picture show



Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 6Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 7Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 8Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 3Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 4Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 5Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 12





Packing & Delivery

Packing :

High strength carton box, wooden box / palltet / customized. customer logo print is accepted.

Delivery :

by express, by air, and by sea according to the quantity.



Factory Direct Durable TPU Oil Bladder Storage Tank  Collapsible 500 Gallon Fuel Tank 13

Advantages

 ★ Easy to assemble.
★ Supply fuel anywhere anytime.
★ Easy operation & easy carriage(Movable and transferable to anywhere you want).
★ Nontoxic, food grade, UV resistant, ant oxidative, thermostable, cold resistant.
★ Stretch-Proof, resistant to stripping, antibacterial, acid & alkali resistant.
★ Durable and Non-Distortable.
★ 3-ply nontoxic rubber synthetic fibre PVC with screen mesh for added protection.
★ Nonpoisonous & Tastless,No pollution to water.
★ Flexible and folded, easy packing, long life and low maintenance costs.
★ High-frequency welding or heat sealing.







Applications include:
* Spill Response
* HAZMAT Operations
* Residential Temp. Fluid Storage
* Potable / Fresh Water Tank
* Hydraulic Fracturing “Fracking”
* Transformer Oil / Mineral Oil

* Forestry Service
* Firefighting
* Chemical Storage
* Disaster Relief
* Aquaculture/ Farming
* Military Operations

* Remote Storage
* Fuel Storage
* Tank Farms
* Portable Water Tank
* Remediation Projects
* Water Treatment Plants
