Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank

Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank

Products - Fuel storage bladder
  • Features
    Anti-uv, Anti-leaking, Anti-fouling And Acid & Alkali Resistance
  • Product Name
    Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank
  • Application
    Water/Liquid/Fuel/Oil Storage; Fish Farming; Exhibition; Others
  • Material
    TPU Food Grade
  • Material Thickness
    0.7mm~1.5mm
  • Color
    Blue; Green; Other Color
  • Shape
    Rectangular/Pillow/cylinder
  • Temperature
    -40° ~ + 90°
  • Lifespan
    10-15 Years
  • Place of Origin
    China
  • Brand Name
    ALY
  • Certification
    ISO, CE, SGS
  • Model Number
    A
  • Minimum Order Quantity
    1
  • Price
    USD/RMB
  • Packaging Details
    Carton box and wooden box
  • Delivery Time
    7-15 WORK DAYS
  • Payment Terms
    Western Union, T/T, L/C, PayPal
  • Supply Ability
    5000

Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank

  • Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank
  • Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank
  • Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank
  • Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank
  • Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank
  • Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank
Get Price Contact Now
Product Information

Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank ​

Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 0

Our products have pillow water tank, Rectangular water tank /bladder, Onion shape tank, fuel storage tank, fish tank and etc...And the shape we accept customized.

Flexible and Software Fuel Storage Flexitank Bladder is a kind of flexible fuel container, which is mainly used for temporary and long-term storage of gasoline, diesel, jet fuel, avgas, aviation kerosine and so on. Many customers use it for private jets, outdoor vehicles, ships, yachts, etc.. Other expedition aircraft clubs and air force are like it too, and think it is awesome choice.

Main Specification
Volume
Thickness
Weight
Size(L*W)
Packing Size
250L
0.7mm
4kg
1*0.85m
0.4*0.4*0.3m
500L
0.7mm
7.3kg
2*1.1m
0.4*0.4*0.3m
1,000L
0.7mm
13kg
2.5*1.5m
0.5*0.4*0.3m
2,000L
0.8mm
22kg
3*2m
0.5*0.4*0.3m
2,500L
0.8mm
25kg
3*2.5m
0.5*0.4*0.3m
3,000L
0.8mm
28kg
3.7*2.2m
0.5*0.4*0.4m
5,000L
0.9mm
32kg
4.6*3m
0.7*0.5*0.4m
8,000L
0.9mm
50kg
5*3m
1.1*0.57*0.3m
10,000L
1.0mm
76kg
5*4m
1.1*0.57*0.3m
15,000L
1.0mm
83kg
6*4m
1.1*0.57*0.3m
20,000L
1.0mm
90kg
6*5m
1.1*0.67*0.5m
25,000L
1.0mm
126kg
6.3*5.8m
1.1*0.67*0.5m
30,000L
1.0mm
150kg
8*6m
1.1*0.7*0.6m
35,000L
1.0mm
185kg
8*7m
1.1*0.7*0.6m
40,000L
1.2mm
210kg
9*7m
1.1*0.8*0.7m
45,000L
1.2mm
236kg
9*8m
1.1*0.8*0.7m
50,000L
1.2mm
260kg
10*8m
1.1*0.9*0.8m
60,000L
1.2mm
335kg
10*9m
1.1*1.0*0.6m
100,000L
1.5mm
620kg
14*9m
2.2*0.9*0.8m
200,000L
1.5mm
1190kg
15*14m
2.2*1.5*1.2m
Please note that all size can be customized.

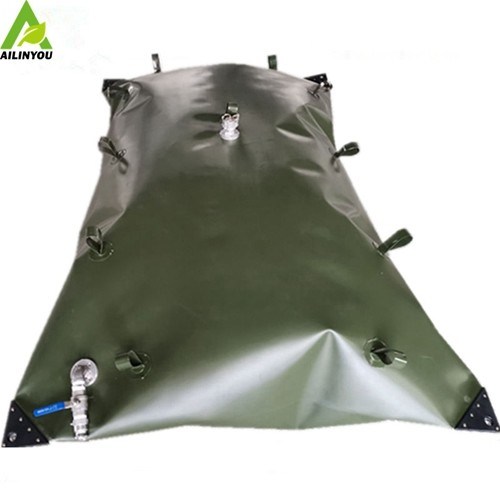

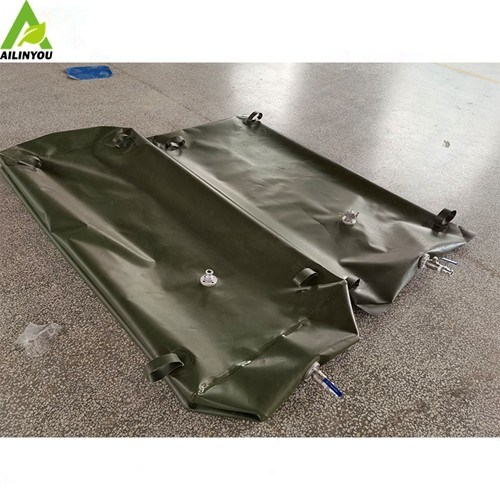

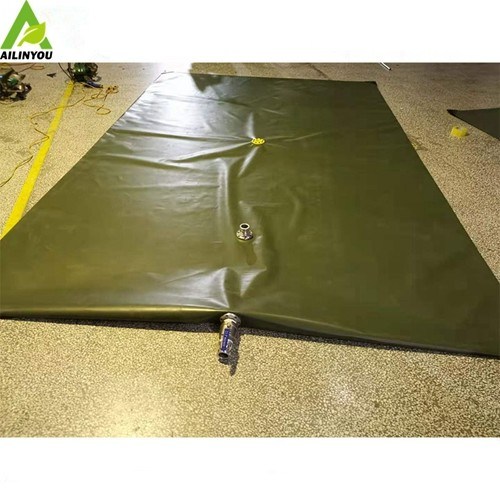

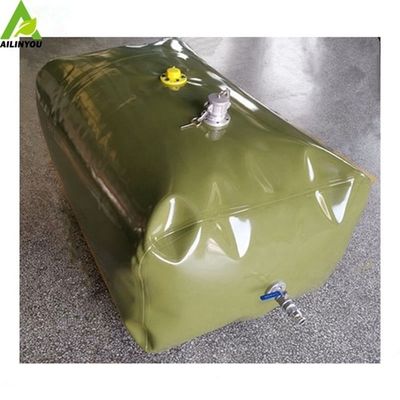

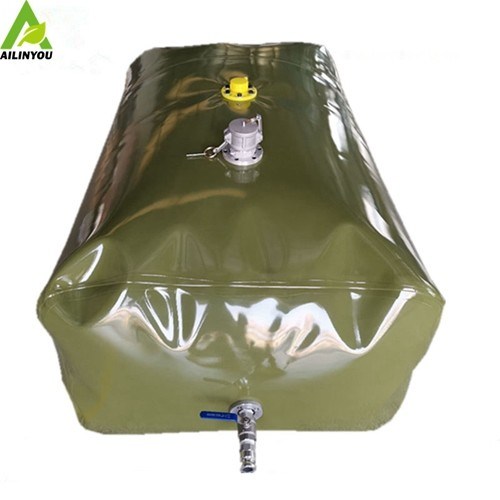

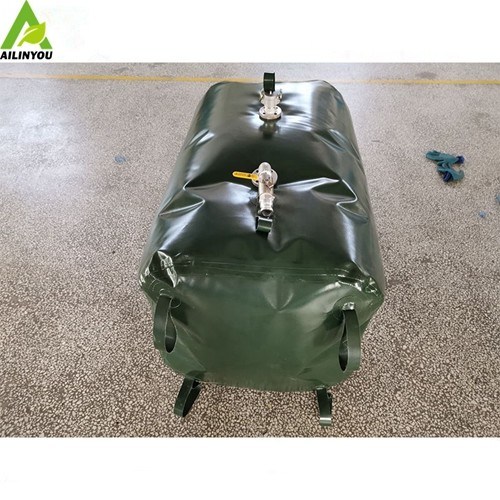

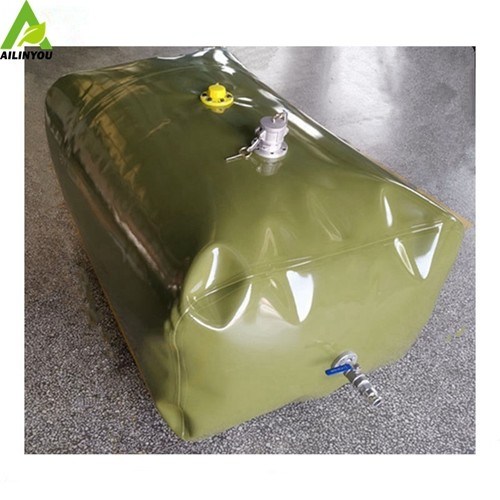

Detailed Images

Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 1Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 2Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 3Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 4Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 5



VALVE DIMENSION


DIMENSION
INCH
1/4
3/8
1/2
3/4
1
1-1/4
DN(mm)
6
10
15
20
25
32

INCH
1-1/2
2
2-1/2
3
3-1/2
4
DN(mm)
40
50
65
80
90
100





1. Non-Potable Water Storage

- PVC fabric, Common water storage, such as animal drinking, irrigation, daily water use, industrial use, rainwater collection, water transportation, emergency rescue, municipal construction, etc.

2. Potable Water Storage

- TPU fabric, 100% suitable for people drinking. It can be applied for military, humanitarian aid, etc...

3. Custom Drainage Hole

- the size of the inlet & outlet accessories is optional, the standard is 2inch(DN50).

- The position can be customized.

- Material selection: Plastic, Stainless steel, Aluminum.

4. Optional PVC liner Color

- bule, green, black, white, red, orange, gray, yellow, etc...



Advantages

The characteristics of fuel storage tank

★ Easy to assemble.
★ Supply water anywhere anytime.
★ Easy operation & easy carriage(Movable and transferable to anywhere you want).
★ Nontoxic, food grade, UV resistant, ant oxidative, thermostable, cold resistant.
★ Stretch-Proof, resistant to stripping, antibacterial, acid & alkali resistant.
★ Durable and Non-Distortable.
★ 3-ply nontoxic rubber synthetic fibre PVC with screen mesh for added protection.
★ Nonpoisonous & Tastless,No pollution to water.
★ Flexible and folded, easy packing, long life and low maintenance costs.
★ High-frequency welding or heat sealing.

Customer feedback
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 6
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 7
Packing & Delivery
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 8
Carton + Outer Woven Bag
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 9
Carton Box
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 10
Wooden Box
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 11
Railway Transportation
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 12
Express/Air Transport
Flexible Custom Size TPU Fuel Storage Bladder Gasoline Marine Fuel Tank Yacht Fuel Tank 13
Sea Transportation
FAQ

Q1: Can you offer samples?
A: Yes, we can send a sample to you in order that you can check the quality.
Q2: Can I get any discount?
A: The price is negotiable, we can offer you discount price according to your quantity.
Q3: How much are the shipping costs?
A:Shipping cost is charged by the package's weight and related to the shipping methods and your destination.
Q4: Can you provide custom sizes and styles?
A:Yes we can.
Q5: What's your delivery time ?
A:Usually is 15-20 working days after received the payment. If your order is urgent, we can make for you in advance.
Q6: What's your Warranty?
A:1-2 years(Except for intentional damage).
Q7: What can you do if we get the goods with bad quality?
A: 1.Take photos of the goods with problem to us.
2.Keep the goods for us.
3.Send all your feedback to our sales. Our clients service team will help you solve the problem together. If the problem caused by us, we will afford this responsibility.
