200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank

200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank

  • Item Name
    Water Storage Bladder,Flexible Tank,PVC Water Bladder,pillow Tank
  • Application
    Water Storage, Water Storage/Drinking/Fire Fighting, Water Supply For Industry, Civil, Industry
  • Usage
    Agriculturial And Industrial Water Tank, Rain Collection, Irrigation, Liquid Storage
  • Material
    PVC, PVC/TPU, PVC Coated Industrial Textil, PVC Coated Fabric, PVC Or TPU Coating Fabirc
  • Color
    Blue, White, Black, Red, Grey
  • Capacity/Volume
    50L ~500,000Liters
  • Thickness
    0.7mm ~1.5mm
  • Shape
    Pillow, Onion, Rectangle/Pillow/Onion/Round, Square Shape, Rectangular/square/round/onion
  • Feature
    Waterproof, Flame Retardant, Tear-Resistant, Anti-leaking, Anti-corrosion
  • Life Time
    Over 10 Years
  • After-sales Service Provided
    Online Support, Video Technical Support, Free Spare Parts
  • Customized
    Yes
  • Place of Origin
    China
  • Brand Name
    P
  • Certification
    ISO, CE, SGS
  • Model Number
    P
  • Minimum Order Quantity
    1
  • Price
    USD10-USD998/PCS
  • Packaging Details
    Carton box or wooden box
  • Delivery Time
    10-15working days after received the payment
  • Payment Terms
    Western Union, T/T, L/C
  • Supply Ability
    5000

200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank

Product Description

200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank

200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 0

All water tanks are used by a variety of industries, such as Agricultural, Industrial, fish farm, Water Purification, Aquaculture projects, Domestic Drinking Water ,store Industrial water, Fire water, Fire fighting, Rainwater harvesting, Irrigation water, Humanitarian, Concrete mixing water, Drinking water, Slope green water, Sewage water storage , Oil well cementing and etc.

Type
Pillow, Onion, Rectangle/Pillow/Onion/Round, Square Shape, Rectangular/square/round/onion
Raw material
Three layers with mesh PVC and TPU
Material of thickness
0.7mm~1.5mm
Color
Red/Blue/White /Green /Black /Yellow ...
Capacity
0.1m3-1000m3(100Liters ~1000,000Liters )
Feature
Anti-uv, anti-leaking, Anti-Fouling and acid& alkali resistance.
Temperature
-40°C~+90°C.
Lifespan
10-15 year
Advantages
It can be folded when empty, the weight light and easy to transport, on-site installation is simple, long life and low maintenance costs.



Specification
Type
Volume
Size
Thickness
G.W
Packing size
P2
200L
1.4*0.9m
0.9mm
~3kgs
~0.4*0.4*0.3m
P5
500L
2*1m
0.9mm
~5kgs
~0.4*0.4*0.3m
P01
1,000L
2.5*1.5m
0.9mm
~11kgs
~0.5*0.4*0.3m
P02
2,000L
3*2m
0.9mm
~16kgs
~0.5*0.4*0.3m
P03
3,000L
3.5*2m
0.9mm
~22kgs
~0.5*0.5*0.4m
P04
4,000L
4*2.4m
0.9mm
~28kgs
~0.7*0.5*0.4m
P05
5,000L
4.3*3m
0.9mm
~35kgs
~0.7*0.5*0.4m
P08
8,000L
5*3m
0.9mm
~40kgs
~1.1*0.5*0.3m
P10
10,000L
5*4m
1.0mm
~55kgs
~1.1*0.55*0.35m
P15
15,000L
6*4.m
1.0mm
~75kgs
~1.1*0.6*0.4m
P20
20,000L
7*4.3m
1.0mm
~85kgs
~1.1*0.7*0.5m
P25
25,000L
6.3*5.8m
1.0mm
~98kgs
~1.1*0.7*0.6m
P30
30,000L
7.3*7m
1.0mm
~140kgs
~1.3*0.7*0.6m
P40
40,000L
9*7m
1.2mm
~210kgs
~1.3*0.8*0.7m
P50
50,000L
10*8m
1.2mm
~256kgs
~1.3*0.9*0.8m
P100
100,000L
14*9m
1.2mm
~460kgs
~1.6*0.9*85cm
P150
150,000L
15*12m
1.2mm
~570kgs
~1.6*1*0.9m
P200
200,000L
15*14m
1.2mm
~710kgs
~1.6*1.2*0.9m
P500
500,000L
25*20m
1.5mm
~1800kgs
~2.5*1.8*1.5m


And the size we can accept customized .

Inlet and Outlet :
1/2’’ - DN15
3/4’’ - DN20
1’’- DN25
1-1/4’’ - DN32
1-1/2’’ - DN40
2’’ - DN50
2-1/2’’ - DN65
3’’ - DN80
3-1/2’’ - DN90
4’’ - DN100
Material selection
Plastic, Stainless steel, Aluminum

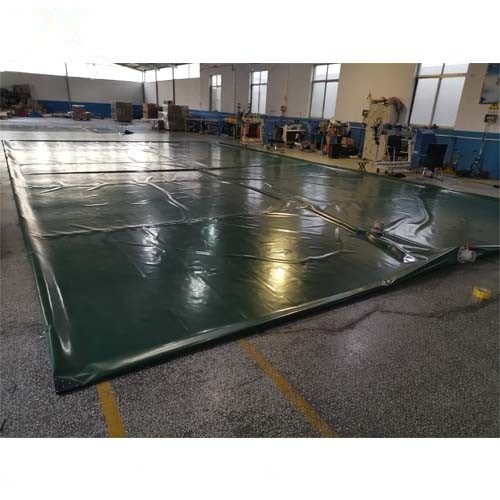

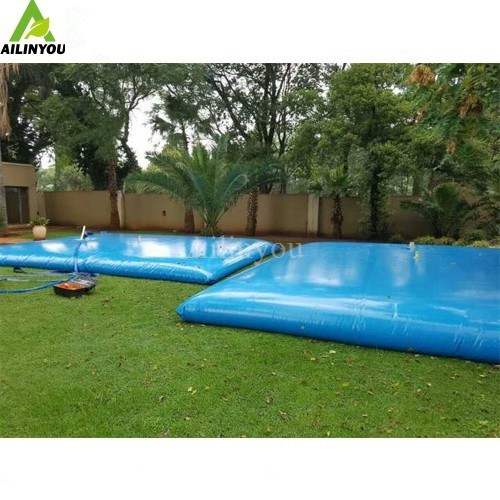

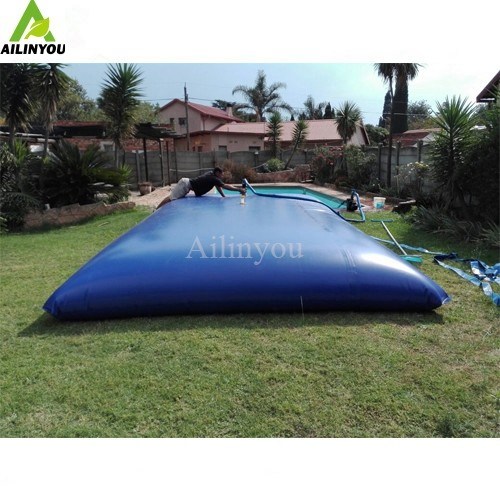

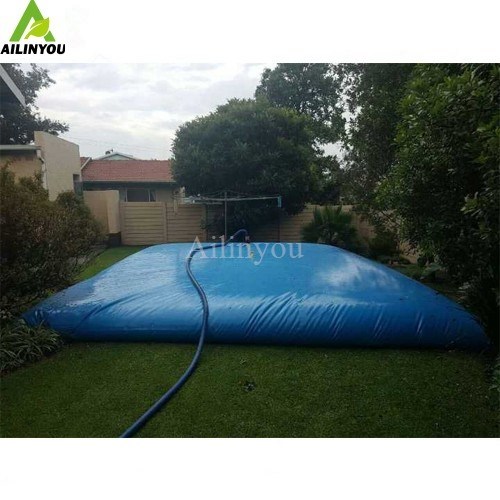

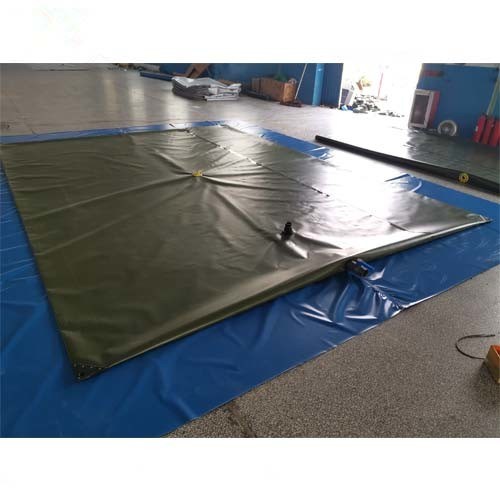

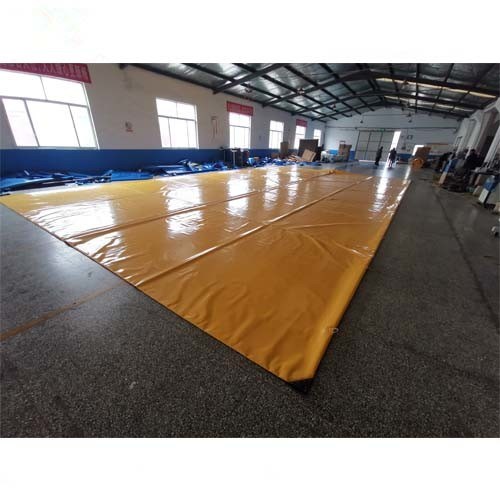

Picture show

 200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 1

200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 2

200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 0200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 4200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 5200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 6



Packing & Delivery

Packing :

High strength carton box, wooden box / palltet / customized. customer logo print is accepted.

Delivery :

by express, by air, and by sea according to the quantity.



200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 7200llitres -20000 liter Inflatable Bladder plastic large pvc/tpu pillow flexible water storage tank 8

Advantages

 ★ Easy to assemble.
★ Supply water anywhere anytime.
★ Easy operation & easy carriage(Movable and transferable to anywhere you want).
★ Nontoxic, food grade, UV resistant, ant oxidative, thermostable, cold resistant.
★ Stretch-Proof, resistant to stripping, antibacterial, acid & alkali resistant.
★ Durable and Non-Distortable.
★ 3-ply nontoxic rubber synthetic fibre PVC with screen mesh for added protection.
★ Nonpoisonous & Tastless,No pollution to water.
★ Flexible and folded, easy packing, long life and low maintenance costs.
★ High-frequency welding or heat sealing.

FAQ

Q1: Can you offer samples?
A: Yes, we can send a sample to you in order that you can check the quality.

Q2: Can I get any discount?
A: The price is negotiable, we can offer you discount price according to your quantity.

Q3: How much are the shipping costs?
A:Shipping cost is charged by the package's weight and related to the shipping methods and your destination.

Q4: Can you provide custom sizes and styles?
A:Yes we can.

Q5: What's your delivery time ?
A:Usually is 15-20 working days after received the payment. If your order is urgent, we can make for you in advance.

Q6: What's your Warranty?
A:1-2 years(Except for intentional damage).

Q7: What can you do if we get the goods with bad quality?
A: 1.Take photos of the goods with problem to us.
2.Keep the goods for us.
3.Send all your feedback to our sales. Our clients service team will help you solve the problem together. If the problem caused by us, we will afford this responsibility.
