flexible water storage tanks 5000 Litres Onion tank for firefighting or water treatment

flexible water storage tanks 5000 Litres Onion tank for firefighting or water treatment

  • Item Name
    Water Storage Bladder,Flexible Tank,PVC Water Bladder,Onion Tank
  • Application
    Water Storage, Water Storage/Drinking/Fire Fighting, Water Supply For Industry, Civil, Industry
  • Usage
    Agriculturial And Industrial Water Tank, Rain Collection, Irrigation, Liquid Storage
  • Material
    PVC, PVC/TPU, PVC Coated Industrial Textil, PVC Coated Fabric, PVC Or TPU Coating Fabirc
  • Color
    Blue, White, Black, Red, Grey
  • Capacity/Volume
    50L ~500,000Liters
  • Thickness
    0.7mm ~1.5mm
  • Shape
    Pillow, Onion, Rectangle/Pillow/Onion/Round, Square Shape, Rectangular/square/round/onion
  • Feature
    Waterproof, Flame Retardant, Tear-Resistant, Anti-leaking, Anti-corrosion
  • Life Time
    Over 10 Years
  • After-sales Service Provided
    Online Support, Video Technical Support, Free Spare Parts
  • Customized
    Yes
  • Place of Origin
    China
  • Brand Name
    V
  • Certification
    ISO, CE, SGS
  • Model Number
    P
  • Minimum Order Quantity
    1
  • Price
    USD128-USD998/PCS
  • Packaging Details
    Carton box or wooden box
  • Delivery Time
    10-15working days after received the payment
  • Payment Terms
    Western Union, T/T, L/C
  • Supply Ability
    5000

flexible water storage tanks 5000 Litres Onion tank for firefighting or water treatment

Product Description

Flexible water storage tanks 5000 Litres Onion tank for firefighting or water treatment

flexible water storage tanks 5000 Litres Onion tank for firefighting or water treatment 0

All water tanks are used by a variety of industries, such as Agricultural, Industrial, fish farm, Water Purification, Aquaculture projects, Domestic Drinking Water ,store Industrial water, Fire water, Fire fighting, Rainwater harvesting, Irrigation water, Humanitarian, Concrete mixing water, Drinking water, Slope green water, Sewage water storage , Oil well cementing and etc.

Type
Pillow, Onion, Rectangle/Pillow/Onion/Round, Square Shape, Rectangular/square/round/onion
Raw material
Three layers with mesh PVC and TPU
Material of gas holder
Red Mud
Color
Red/Blue/White /Green /Black /Yellow ...
Capacity
0.1m3-1000m3(100Liters ~1000,000Liters )
Feature
Anti-uv, anti-leaking, Anti-Fouling and acid& alkali resistance.
Temperature
-40°C~+90°C.
Lifespan
10-15 year
Advantages
It can be folded when empty, the weight light and easy to transport, on-site installation is simple, long life and low maintenance costs.



Specification
Type
Volume
Size
Thickness
G.W
Packing size
P2
200L
1.4*0.9m
0.9mm
~3kgs
~0.4*0.4*0.3m
P5
500L
2*1m
0.9mm
~5kgs
~0.4*0.4*0.3m
P01
1,000L
2.5*1.5m
0.9mm
~11kgs
~0.5*0.4*0.3m
P02
2,000L
3*2m
0.9mm
~16kgs
~0.5*0.4*0.3m
P03
3,000L
3.5*2m
0.9mm
~22kgs
~0.5*0.5*0.4m
P04
4,000L
4*2.4m
0.9mm
~28kgs
~0.7*0.5*0.4m
P05
5,000L
4.3*3m
0.9mm
~35kgs
~0.7*0.5*0.4m
P08
8,000L
5*3m
0.9mm
~40kgs
~1.1*0.5*0.3m
P10
10,000L
5*4m
1.0mm
~55kgs
~1.1*0.55*0.35m
P15
15,000L
6*4.m
1.0mm
~75kgs
~1.1*0.6*0.4m
P20
20,000L
7*4.3m
1.0mm
~85kgs
~1.1*0.7*0.5m
P25
25,000L
6.3*5.8m
1.0mm
~98kgs
~1.1*0.7*0.6m
P30
30,000L
7.3*7m
1.0mm
~140kgs
~1.3*0.7*0.6m
P40
40,000L
9*7m
1.2mm
~210kgs
~1.3*0.8*0.7m
P50
50,000L
10*8m
1.2mm
~256kgs
~1.3*0.9*0.8m
P100
100,000L
14*9m
1.2mm
~460kgs
~1.6*0.9*85cm
P150
150,000L
15*12m
1.2mm
~570kgs
~1.6*1*0.9m
P200
200,000L
15*14m
1.2mm
~710kgs
~1.6*1.2*0.9m
P500
500,000L
25*20m
1.5mm
~1800kgs
~2.5*1.8*1.5m

The thickness have 0.7mm ~1.5mm for choice .
And the size we can accept customized .

Inlet and Outlet :
1/2’’ - DN15
3/4’’ - DN20
1’’- DN25
1-1/4’’ - DN32
1-1/2’’ - DN40
2’’ - DN50
2-1/2’’ - DN65
3’’ - DN80
3-1/2’’ - DN90
4’’ - DN100
Material selection
Plastic, Stainless steel, Aluminum

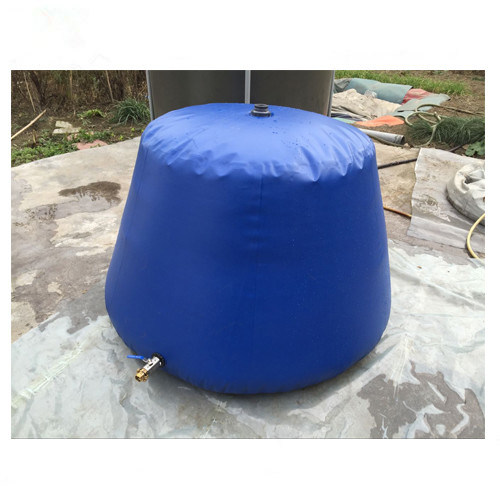

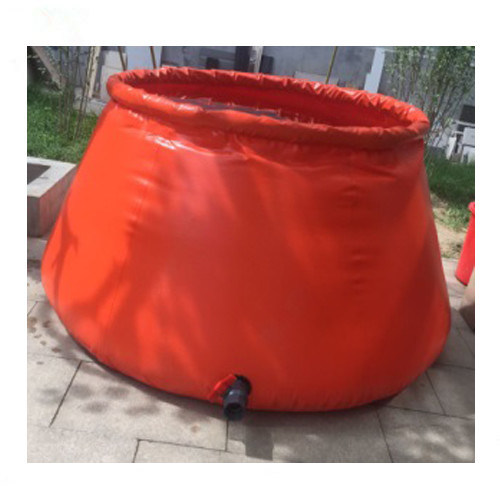

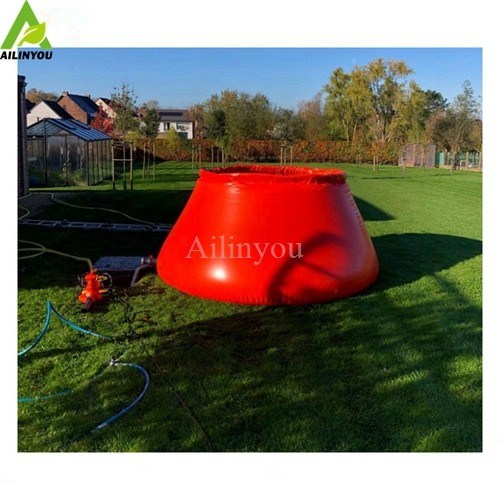

Picture show

 flexible water storage tanks 5000 Litres Onion tank for firefighting or water treatment 1





Packing & Delivery

Packing :

High strength carton box, wooden box / palltet / customized. customer logo print is accepted.

Delivery :

by express, by air, and by sea according to the quantity.
