open top aquarium tank ras fishing system fish farming for aquaponic aquaculture

Products - Fish Farming Tank

Product Name

Aquaculture Tank
Application

Fish Farming/Water Storage/RAS System
Material

PVC Or TPU Food Grade
Material Thickness

0.7mm~1.5mm
Color

Blue, Green, Black, Custom
Capacity

100L To 50000L, Can Be Customized
Temperature

-40° ~ +90°
Lifespan

10-12 Years
Advantage

Factory Supply, Easy Installation
Warranty

1-2 Years (except For Intentional Damage)
Place of Origin

China
Brand Name

V
Certification

ISO, CE, SGS
Model Number

VR
Minimum Order Quantity

1
Price

USD/RMB
Packaging Details

Carton box and wooden box
Delivery Time

7-15 WORK DAYS
Payment Terms

Western Union, T/T, L/C
Supply Ability

5000

open top aquarium tank ras fishing system fish farming for aquaponic aquaculture

button button

Get Price Contact Now

Product Information

AQUACULTURE

The mobile aquaculture tank are designed to supply aquaculture anywhere needed and immediately available.
The tanks is easy installation. The wide range of optional features and the possibility customized, suitable for different indoor and outdoor applications.
WHERE TO USE PVC AQUACULTURE TANKS

Indoor&Outdoor Fish Aquaculture
Tilapia Farming
Shrimp Farming
Catfish Farming
Lobster Farming
Koi Show
Wastewater Storage
Irrigation Water Storage
Firefighting Water Storage
Rainwater Collection and storage

Main Specification

Capacity(Liter)	LWH(m)	Weight(kgs)	Packing size
500L	1x1x0.5	8	0.005
700L	1x1x0.7	10	0.007
1000L	1x1x1	13	0.01
2000L	2x1x1	20	0.03
3000L	2x1.5x1	24	0.05
5000L	2.5x2x1	33	0.08
8000L	3.5x2x1.2	40	0.12
10000L	4x2.2x1.2	50	0.15
15000L	5x2.5x1.2	65	0.22
20000L	5x3.5x1.2	80	0.3
30000L	7x3.5x1.3	100	0.5
40000L	8x4x1.3	170	0.6
If the size is not suitable to you, we can customize as your requirement.

Product Display

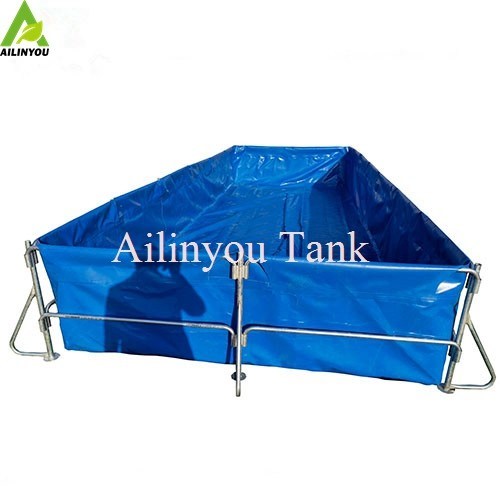

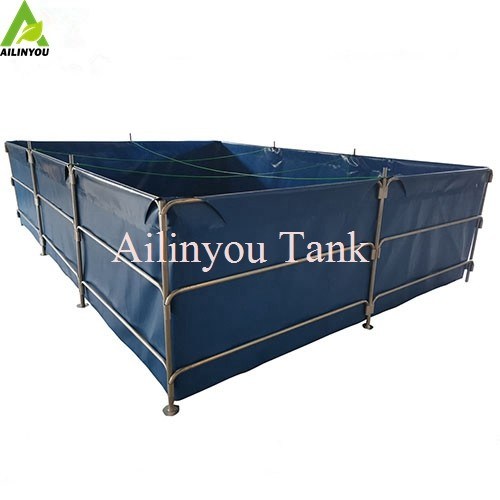

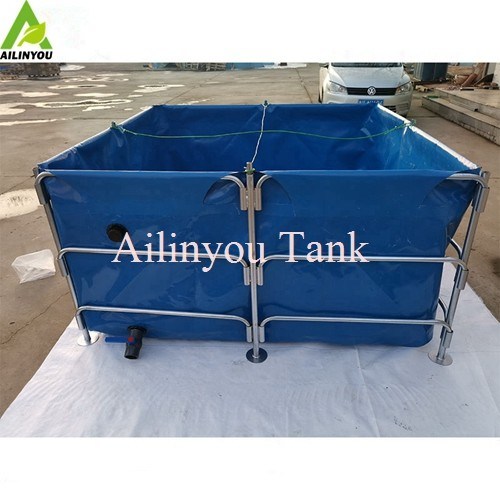

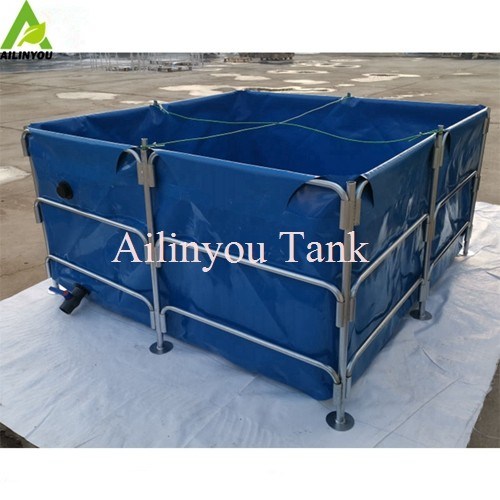

open top aquarium tank ras fishing system fish farming for aquaponic aquaculture 0

1. PVC coated fabric liner

- Nontoxic, UV resistant, ant oxidative, thermostable, cold resistant;

- Stretch-Proof, resistant to stripping, antibacterial, acid & alkali resistant.

- 3-ply nontoxic rubber synthetic fibre PVC with screen mesh for added protection.

2. Demountable hot/cold-dip galvanized steel tube

- Double side zinc coating, comprehensive anticorrosive;

- Strengthened wall thickness of the tube, Durable and Non-Distortable.

- The horizontal pipe is combined with the vertical pipe to increase the stability of the fish tank.

3. Custom Drainage Hole

- the size of the inlet & outlet accessories is optional, the standard is 2inch(DN50).

- The position can be customized.

- Material selection: Plastic, Stainless steel, Aluminum.

4. Optional PVC liner Color: - bule, green, black, white, red, orange, gray, yellow, etc...


			VALVE DIMENSION

DIMENSION

			INCH

			1/4

			3/8

			1/2

			3/4

			1

			1-1/4

			DN(mm)

			6

			10

			15

			20

			25

			32

			INCH

			1-1/2

			2

			2-1/2

			3

			3-1/2

			4

			DN(mm)

			40

			50

			65

			80

			90

			100

Advantages★ Easy to assemble.

★ Movable and transferable to anywhere you want.

★ Nontoxic, UV resistant, ant oxidative, thermostable, cold resistant.

★ Stretch-Proof, resistant to stripping, antibacterial, acid & alkali resistant.

★ Durable and Non-Distortable.

★ 3-ply nontoxic rubber synthetic fibre PVC with screen mesh for added protection.
★ Easy to assemble.
★ Movable and transferable to anywhere you want.
★ It can house various fishes like barramundi/ silver perch / mulloway / koi / snapper / eel / golden perch/sleepy cod /catfish.
★ It can be folded when empty, the weight light and easy to transport, on-site installation is simple, long life and low maintenance costs.
